System and Security

Configuration Settings Available for System and Security

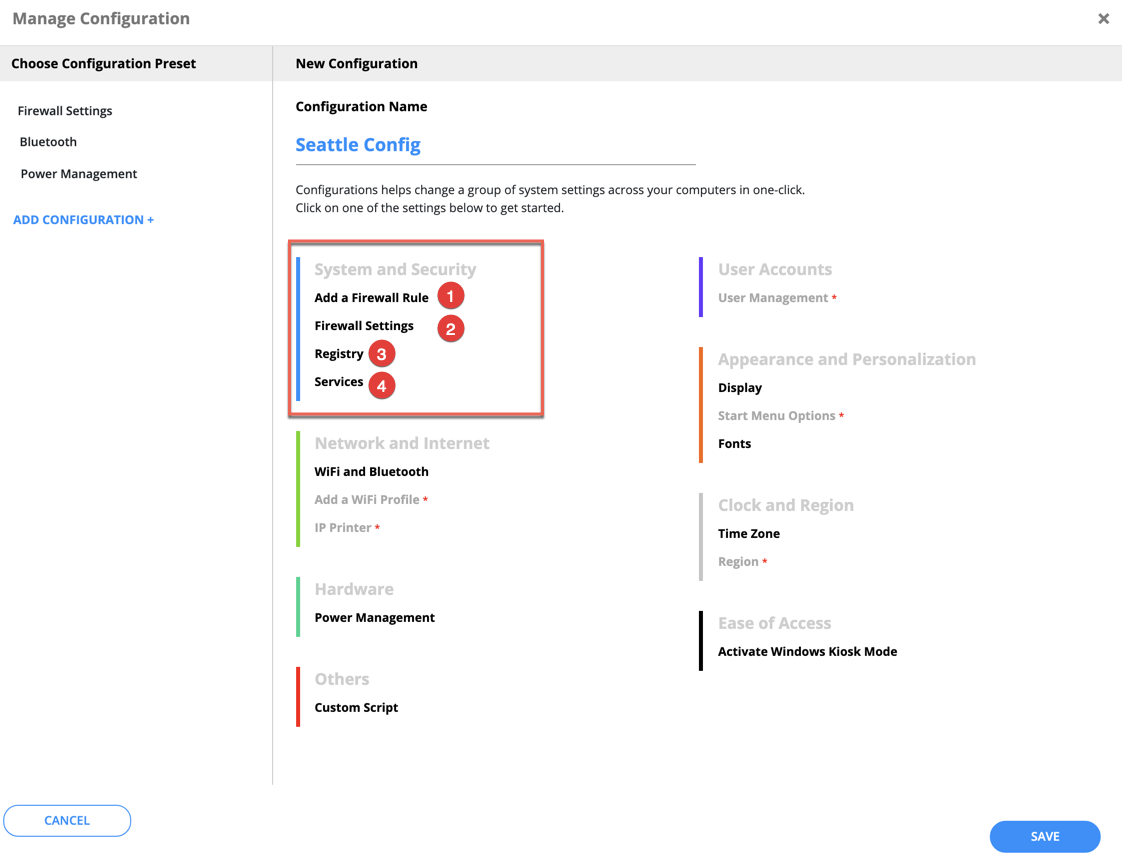

The System and Security configuration settings allow you to Add a Firewall Rule, Add Firewall Settings, Add Registry Settings, and Add Services Settings.

System and Security Configuration Settings

1. Add a Firewall Rule

Add a Firewall Rule Configuration

	Setting	Description
a	Rule Name	Name for your Firewall Rule.
b	Group Name	Windows Firewall Group that your firewall rule will be added to upon creation.
c	Profile	Select the Windows Profile(s) to enable the firewall rule; Domain, Private, or Public.
d	Action	Select Allow or Disallow to determine whether the rule will permit or prevent access through the firewall.
e	Protocol	Select a Protocol from the list to allow/disallow access through the Firewall, or select "Any".
f	Direction	Choose which direction you wish to allow or block traffic from for your Firewall Rule, Inbound or Outbound.
g	Program	Enter a Windows Application to apply the rule to or leave it blank to apply it to all Applications.
h	Overwrite Option	If Firewall Rule with the same name already exists, decide if you want this new rule to overwrite it.

2. Firewall Settings

Add a Firewall Setting

	Setting	Description
a	Profile	Select the Windows Profile(s) to enable the firewall rule; Domain, Private, or Public, or All.
b	Action	Select On or Off to enable or disable the Windows Firewall Profile.

3. Registry

Add Registry Setting

	Setting	Description
a	Manual	Configure the registry manually.
b	External Source	Configure the registry using an external URL.
		Link to Reg file: Enter the URL for the registry file.
c	Action	Select an Action to configure, Add Key, Delete Key, Write Value, Delete Value.
d	Data Type	**Only used for Write Value and Delete Value Actions. REG_SZ - A null-terminated string. REG_BINARY - Binary data in any form. REG_EXPAND_SZ - A null-terminated string that contains unexpanded references to environment variables (for example, "%PATH%"). REG_DWORD - 32bit number. REG_MULTI_SZ - A sequence of null-terminated strings, terminated by an empty string (\0). REG_QWORD - a 64bit number.
e	Value Name	**Only used for Write Value and Delete Value Actions. Name for your registry entry.
f	Value Data	**Only used for Write Value and Delete Value Actions. Data for your registry entry.
g	Header Key	Use the local machine header key or the default user header key HKEY_LOCAL_MACHINE or HKEY_USER(.Default)
h	Sub Key	Optional: a subfolder under the header key.

4. Add Services

Add a Services Configuration

	Setting	Description
a	Service Name	Enter a Service Name (name of a Service that exists in your Services list; located in Windows Administrative Tools).
b	Service Status	Set the Status to one of the following: Do Nothing, Start, Restart, Stop.
c	Startup Type	Select a Startup Type: Do Not Modify, Manual, Disabled, Automatic, Automatic (Delayed Start).
